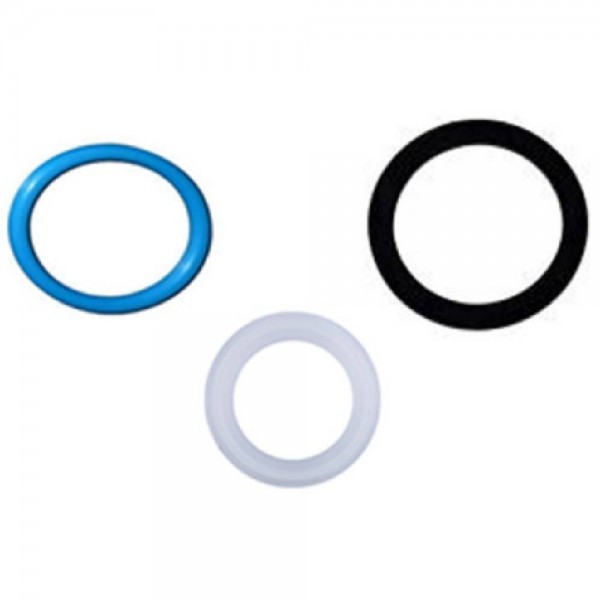

DIN 11851 connection seals. Widely used in food industry. The seals can be made of NBR rubber (NBR), EPDM rubber (EPDM) or Teflon (PTFE).

Operating temperature:

NBR: -30 ° C to + 120 ° C (blue)

EPDM: -45 ° C to + 145 ° C (black)

PTFE: -180 ° C to + 200 ° C (white)

Code	Size	Height A, mm	Inner diameter B, mm	Outer diameter C, mm
GASK-DIN-025 -…	DN25	5,0	30	40
GASK-DIN-032 -…	DN32	5,0	36	46
GASK-DIN-040 -…	DN40	5,0	42	52
GASK-DIN-050 -…	DN50	5,0	54	54
GASK-DIN-063 -…	DN65	5,0	71	81
GASK-DIN-075 -…	DN80	5,0	78	88
GASK-DIN-100 -…	DN100	6,0	104	114
