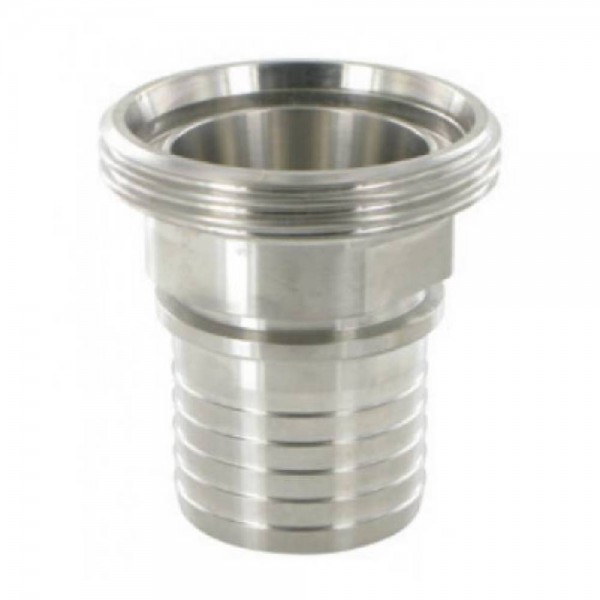

DIN 11851 Stainless steel connection with external thread to the hose

DIN 11851 Stainless steel connection with external thread to the hose. Widely used in food industry. Working pressure 40 bar. The connection can be with a "Christmas tree" in the hose (RIB) or with a flat surface, compressed or attached.

Code	Size	Inner diameter of the hose, mm	Thread	Outer diameter of the thread, mm
DIN-HM-025 -…	DN25	25	52 x 1/6 “	51,8
DIN-HM-032 -…	DN32	32	58 x 1/6 “	57,8
DIN-HM-038 -…	DN40-38	38	65 x 1/6 “	65,0
DIN-HM-040 -…	DN40	40	65 x 1/6 “	65,0
DIN-HM-050 -…	DN50	51	78 x 1/6 “	77,9
DIN-HM-063 -…	DN65	63	95 x 1/6 “	94,9
DIN-HM-075 -…	DN80	76	110 x 1/4 “	109,4
DIN-HM-100 -…	DN100	102	130 x 1/4 “	129,5
