GKA type connector

The connections are for water, air, oil.
The connections are for water, air, oil.
The connections are for water, air, oil.

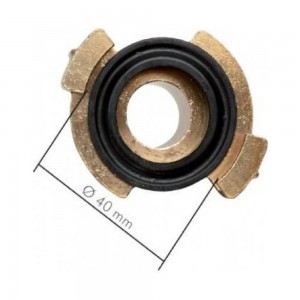

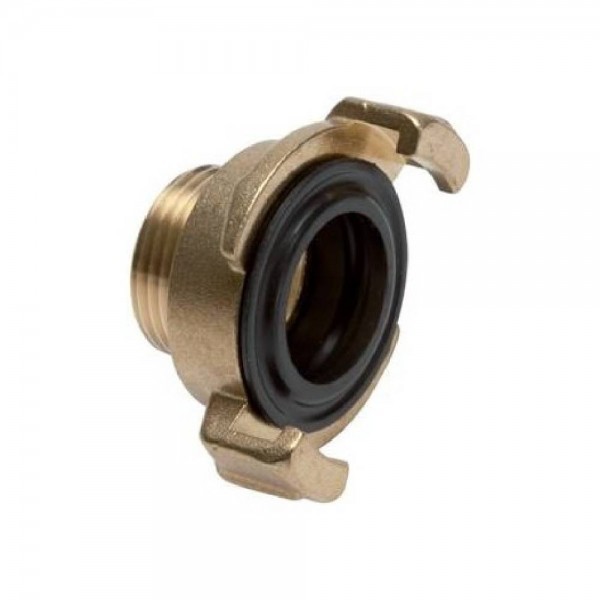

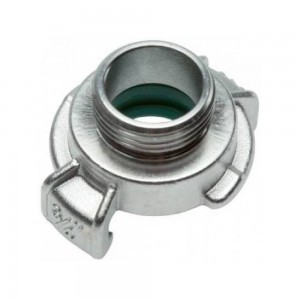

The connections are for water, air, oil. Made of brass (BR) or stainless steel (SS). Working pressure up to 25 bar, also suitable for low vacuum. Lock diameter 40 mm.

Code

 Outer thread, inches
Lock size Ø, mm
GKA-R14 1/4 “

40

GKA-R38

 3/8 “ 40
GKA-R12 1/2 “

40

GKA-R34

 3/4 “ 40
GKA-R10 1 “

40

GKA-R114

 1 1/4 “ 40
GKA-R112 1 1/2 “

40
