SKG type hose connection

The connections are designed for compressed air
The connections are designed for compressed air
The connections are designed for compressed air
The connections are designed for compressed air

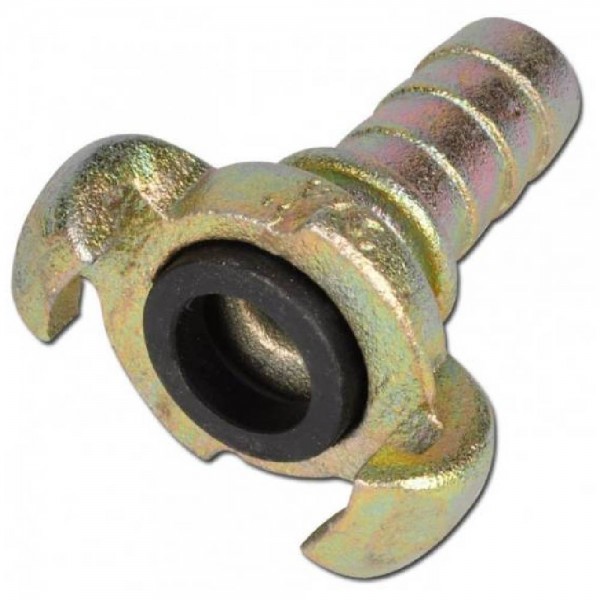

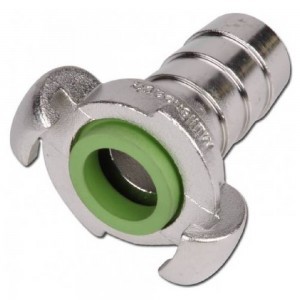

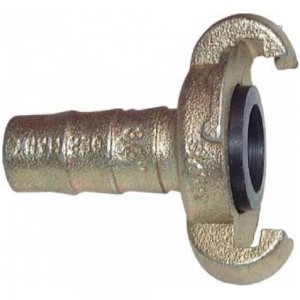

The connections are designed for compressed air. Complies with DIN3483 and DIN3489 standards. Made of galvanized steel, stainless steel. Connections can also be with edges.

Working pressure 10 bar, ner. steel - 16 bars.

Operating temperature from -40 ° C to + 95 ° C

Code

 Size, inches Inner diameter of the hose, mm

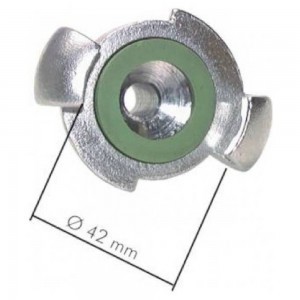

Lock size Ø, mm

SKG-010-S42

 3/8 “ 10 42
SKG-013-S42 1/2 “ 13

42

SKG-019-S42

 3/4 “ 19 42
SKG-025-S42 1 “ 25

42

SKG-032-S42

 1 1/4 “ 32 42
SKG-038-S42 1 1/2 “ 38

42

SKG-051-S42

 2 “ 51

42
