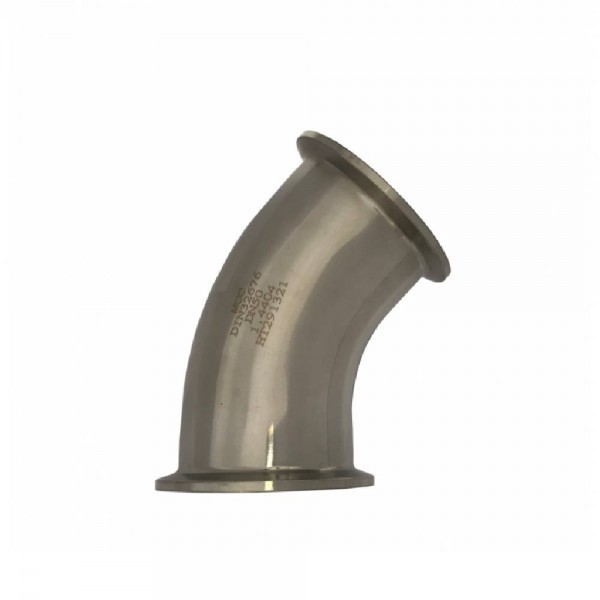

TRI-CLAMP 45° Elbow DIN32676

TRI-ClAMP 45° Elbow stainless steel DIN 32676 couplings coupling serrated hose shank.Create an easy connection for quick assembly or disassembly of secure, leak proof connections. With a gasket in place between clamp ferrules, a single pin heavy duty clamp is used to complete the connection. Used in pharmaceutical, food, cosmetic and chemical industries, in biotechnology, for fluids and high viscosity media.


Code DN Material Disk diameter
TRICLAMP-020-ELBOW-45º 20 Stainless steel (SS) 34
TRICLAMP-025-ELBOW-45º 25 Stainless steel (SS) 55,5
TRICLAMP-032-ELBOW-45º 32 Stainless steel (SS) 55,5
TRICLAMP-040-ELBOW-45º 40 Stainless steel (SS) 55,5
TRICLAMP-050-ELBOW-45º 50 Stainless steel (SS) 64
TRICLAMP-065-ELBOW-45º 65 Stainless steel (SS) 91
TRICLAMP-080-ELBOW-45º 80 Stainless steel (SS) 106
