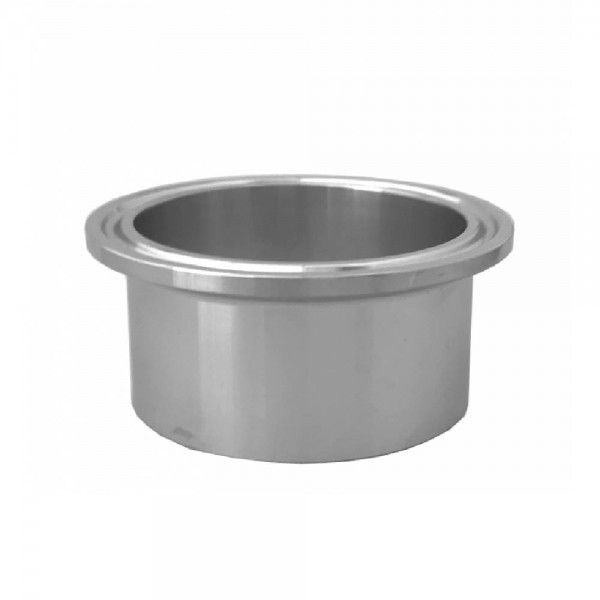

TRI-CLAMP with welding end DIN32676

TRI-Clamp coupling with welding End. Create an easy connection for quick assembly or disassembly of secure, leak proof connections. With a gasket in place between clamp ferrules, a single pin heavy duty clamp is used to complete the connection. Used in pharmaceutical, food, cosmetic and chemical industries, in biotechnology, for fluids and high viscosity media.


Code Material Disk diameter Welding Pipe (mm)
COPY OF TRICLAMP-070-WELDING Stainless steel (SS) 106 81x85
TRICLAMP-019-WELDING Stainless steel (SS) 34 16x19
TRICLAMP-029-WELDING Stainless steel (SS) 55,5 26x29
TRICLAMP-035-WELDING Stainless steel (SS) 55,5 32x35
TRICLAMP-041-WELDING Stainless steel (SS) 55,5 38x41
TRICLAMP-053-WELDING Stainless steel (SS) 64 50x53
TRICLAMP-070-WELDING Stainless steel (SS) 91 66x70
